Orthodontic Work Table
A precision calibrated, easily adjustable work table offering near vertical cutting force. Comes with durable Vertisquare, Angle Guide and Template. Fits 12″ size.

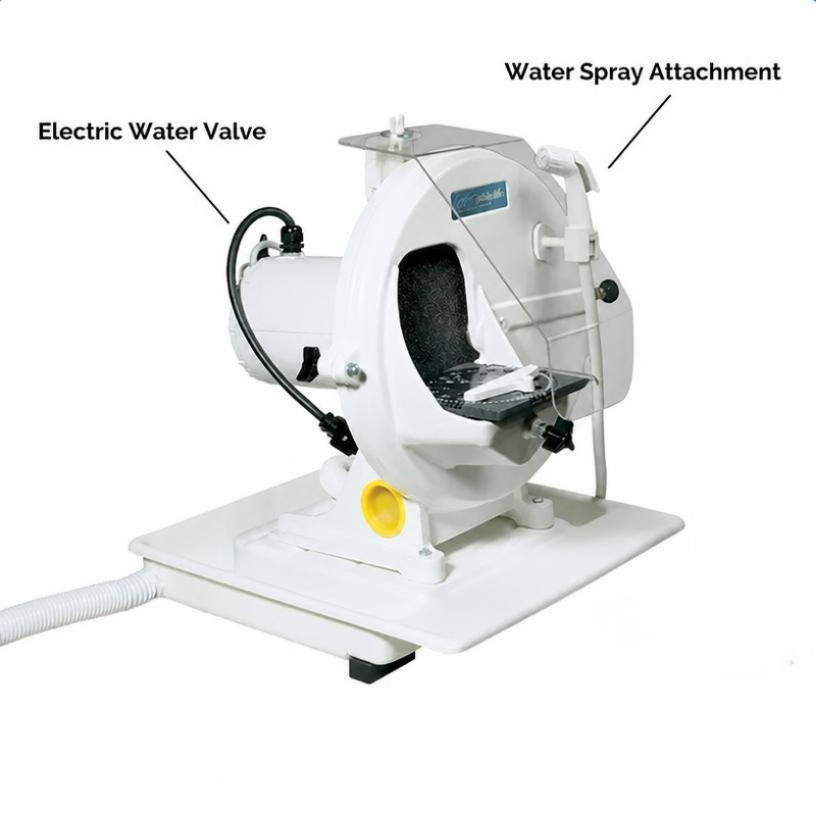

Electric Water Valve
Regulates water supply in conjunction with the trimmer’s on/off switch, saving water and eliminating constant flow adjustment.
Sediment Tray
Mounted on large resilient rubber feet with outlet adjustable to either side or rear. Features built-in model shelf. Size: 18″ long x 16-1/2″ wide x 3″ deep (43.0 cm x 36.5 cm) wide.
Water Spray Attachment
A lever-operated water spray head for easy cleaning of casts.
Splash Shield
Clear plastic shield provides protection from water spray/debris.
Model Trimmer Wheel
12″ Abrasive wheel available in medium, coarse and extra coarse grits. 10″ available in medium grit.
Blue Wonder Diamond Wheels
Diamond particles embedded in fiberglass substrate provide fast, aggressive cutting action. One year guarantee. Available in 10-inch and 12-inch sizes.
12-Inch PSA Disc
Pressure Sensitive discs available in 50 grit.
Conversion Kit
Allows conversion from abrasive wheel to Pressure Sensitive Adhesive Disc System (PSA). Standard kit contains three 50 grit discs, plus a 12″ or 10″ Plastic Backing Disc.
| Item No. |
Description |
|
09602 |
Clean-Cut Wheel Cleaner |
|
|
12777 |
#35015 Orthodontic Work Table Includes Vertisquare, Angle Guide and Template |
|
|
12823 |
#34008 Electric Water Valve (115V/60Hz) |
|
|
12939 |
#35175 Water Spray Attachment |
|
|
22373 |
#35173 Splash Shield |
|
|
22590 |
White plastic sediment tray. Fits most model trimmers |
|
| Replacement Parts |
|
06246 |
#6014A Motor Switch Single Pole (Also used on Vacuum Mixing Units prior to 6/1976) |
|
|
21121 |
#30130 Drain Hose 2' |
|
|
21148 |
#34017 10" & 12" Spray Tube Assembly |
|
|
21156 |
#30122 Door Gasket 12" Trimmer |
|
|
21261 |
#30217 Facing Pad for Vertisquare (Pk 3) |
|
|
21571 |
#30104 Door Gasket 10" Trimmer |
|
|
21695 |
#34033 Vertisquare Assembly |
|
|
21717 |
#30483 12" Work Table |
|
|
21792 |
#30043 Angleguide |
|
|
22020 |
#34076 Attach Button Assembly with Screws & Gasket |
|
|
22446 |
#30045 Template 70mm |
|
|
31887 |
#30704 Water Spray Attachment Holster |
|
| Blue Wonder Diamond Wheel (with gasket) |
|
25135 |
#30432 12" Super Abrasive (70 grit) |
|
|
28614 |
#30430 10" Super Abrasive (70 grit) |
|
| Model Trimmer Wheel (with gasket) |
|
12963 |
#30102 10" Medium Abrasive (36 grit) |
|
|
29327 |
#30293 10" Coarse Abrasive (24 grit) |
|
|
12998 |
#30097 12" Medium Abrasive (36 grit) |
|
|
13005 |
#30292 12" Coarse Abrasive (24 grit) |
|
|
13013 |
#30138 12" Extra Coarse Abrasive (16 grit) |
|
| PSA Disc (Pressure Sensitive Adhesive Disc) |
|
13056 |
#30433 Box of 4 Discs |
|
|
13064 |
#30433 Box of 25 Discs |
|
| Conversion Kit (from Abrasive Wheel to PSA Disc) |
|
13730 |
12" Plastic Backup Disc w/3-50 Grit PSA Discs |
|
